When you need to cool a plant, a warehouse or any other location, MAGICOOL is the best low cost alternative, when applicable, to expensive air conditioning systems. MAGICOOL is superior, in all aspects, to any other existing evaporative coolers.

MAGICOOL provides clean, fresh air using 1/10 of the electricity required for air conditioning.MAGICOOL outstanding performance is achieved by innovative concepts and technology.

Customers prefer MAGICOOL because of it efficiency and economy, far superior to the conventional Aspen Straw media or Honeycomb type coolers. MAGICOOL is constructed from modular sub-assemblies and components easily installed and replaced.

Key Benefits

• Maximal, close to the theoretical limit of temperature reduction - up to 92% - of the physical temperature drop limit.
• Ability to operate even in extra high air humidity conditions
• No water circulating pump or any other moving parts (conventional coolers have)
• No corrosion
• No leaks
• No mechanical maintenance.
• Efficient air filtering to introduce clean air to cooler and prolong the life of the evaporative media elements.
• Optimal water and power consumption.
• Simple Installation and assembly
• High Reliability
• Anti-bacterial evaporative media elements

MAGICOOL TECHNICAL SPECIFICATIONS

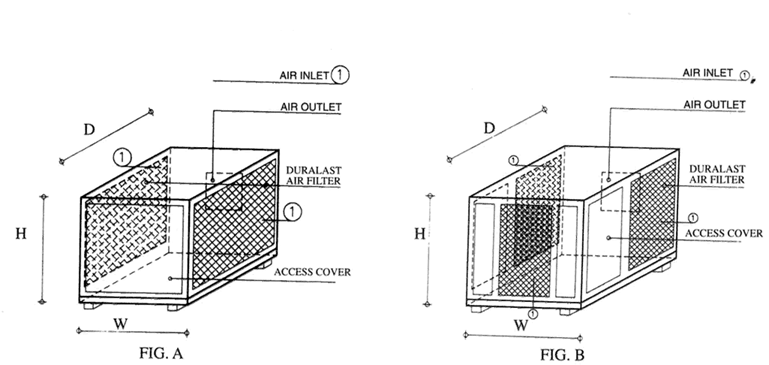

Fig.	Weight Kg.	Phase Volts	RPM	Motor HP	Blower	CFM *	Dimensions in CM			Model Number
							D	W	H
A	78	3x380	1400	1.0	15/15	3600	92.0	105.0	75.0	ST-3600
A	170	3x380	1400	2.0	18/18	6000	110.0	130.0	118.0	ST-6000
A	210	3x380	1400	3.0	18/18	8000	110.0	130.0	150.0	ST-8000
A	250	3x380	1400	4.0	18/18	9000	110.0	130.0	200.0	ST-9000
A	350	3x380	1400	3.0	20/20	10000	110.0	155.0	200.0	ST-10000
A	420	3x380	1400	4.0	20/20	12000	110.0	155.0	230.0	ST-12000
B	630	3x380	1400	4.0	25/25	15000	170.0	220.0	170.0	ST-15000
B	690	3x380	1400	5.5	25/25	18000	170.0	220.0	200.0	ST-18000
B	920	3x380	1400	7.5	30/28	25000	220.0	220.0	200.0	ST-25000
B	1100	3x380	1400	7.5	30/28	30000	220.0	220.0	240.0	ST-30000
B	1280	3x380	1400	10.0	1000	35000	240.0	300.0	240.0	ST-35000

* For external static pressure 1 – 1,5 inch

Independent US Lab Comparison Tests .
Inlet Air			MagiCool				Conventional
Tin., °C	Hum, %		Tout, °C	DT, °C	Effic, %		Tout, °C	DT,°C	Effic, %
40	18		23.3	16.7	90.4		29.0	11.0	59.8
38	24		23.4	14.6	88.8		28.8	9.2	56.2
31	40		22.0	9.0	88.0		25.8	5.2	54.3
28	45		20.3	7.7	88.0		23.3	4.7	55.7
Inlet Air Temperature Is supposed to be equal to Dry Bulb Temperature
